Frameset

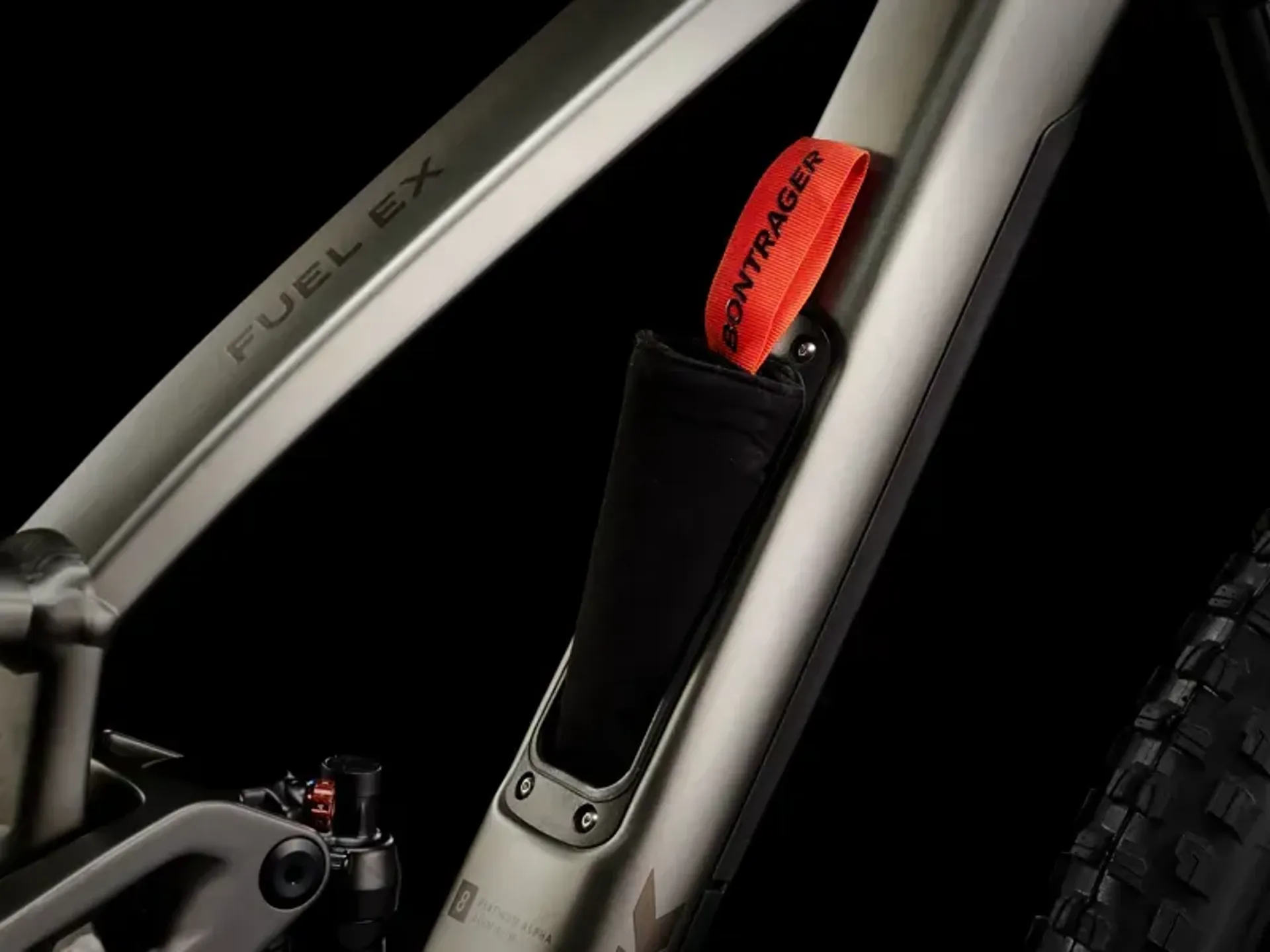

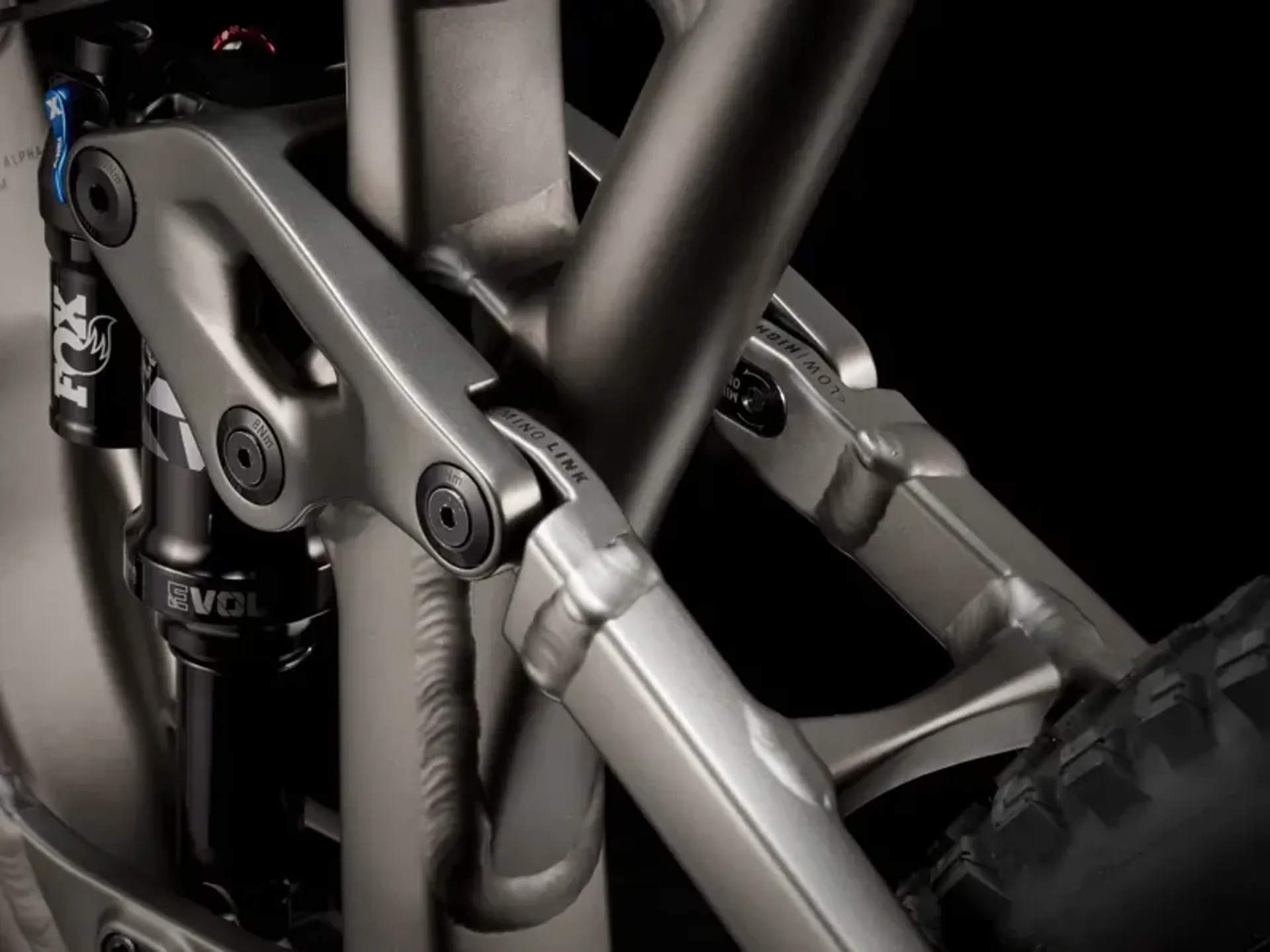

Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork
Size: XS, S - Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
Fork
Size: M, ML, L, XL, XXL - Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

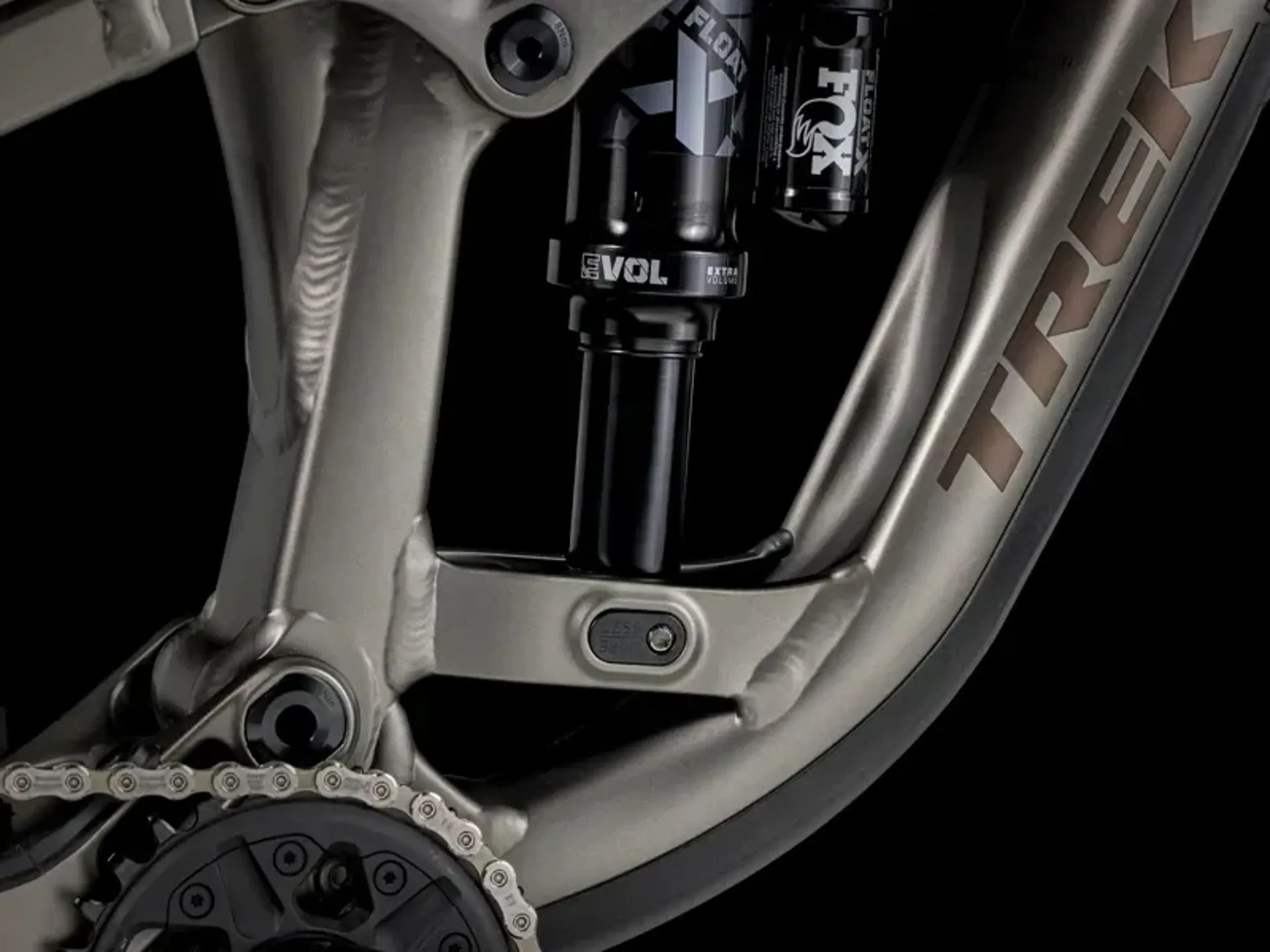

Shock
Fox Performance Float X, 2-position damper, 185 mm x 55 mm
Max Compatible Fork Travel
160mm
Wheel Front
Size: XS, S - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
Wheel Front
Size: M, ML, L, XL, XXL - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel Rear
Size: XS, S - Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Wheel Rear
Size: M, ML, L, XL, XXL - Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Skewer Rear
Bontrager Switch thru-axle, removable lever
Tyre
Size: XS, S - Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"
Tyre
Size: M, ML, L, XL, XXL - Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre Part
Bontrager TLR sealant, 180 ml/6 oz
Max Tyre Size
Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Shifter
Shimano XT M8100, 12-speed
Rear Derailleur
Shimano XT M8100, long cage
Crank
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom Bracket
Shimano BB-MT501 BSA
Cassette
Shimano XT M8100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. Chainring Size
1x: 34T round, 32T oval, min 28T
Saddle
Size: XS, S, M, ML, L, XL, XXL - Bontrager Verse P3, chromoly rails
Saddle
Size: XS, S, M, ML, L, XL, XXL - Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: XS, S - TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Seatpost
Size: M, ML - TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Seatpost
Size: L, XL, XXL - TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Handlebar
Size: XS, S - Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Handlebar
Size: M, ML, L, XL, XXL - Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Size: XS, S - Bontrager Elite, 35 mm, 0-degree, 35 mm length
Stem
Size: M, ML, L, XL, XXL - Bontrager Elite, 35 mm, 0-degree, 45 mm length

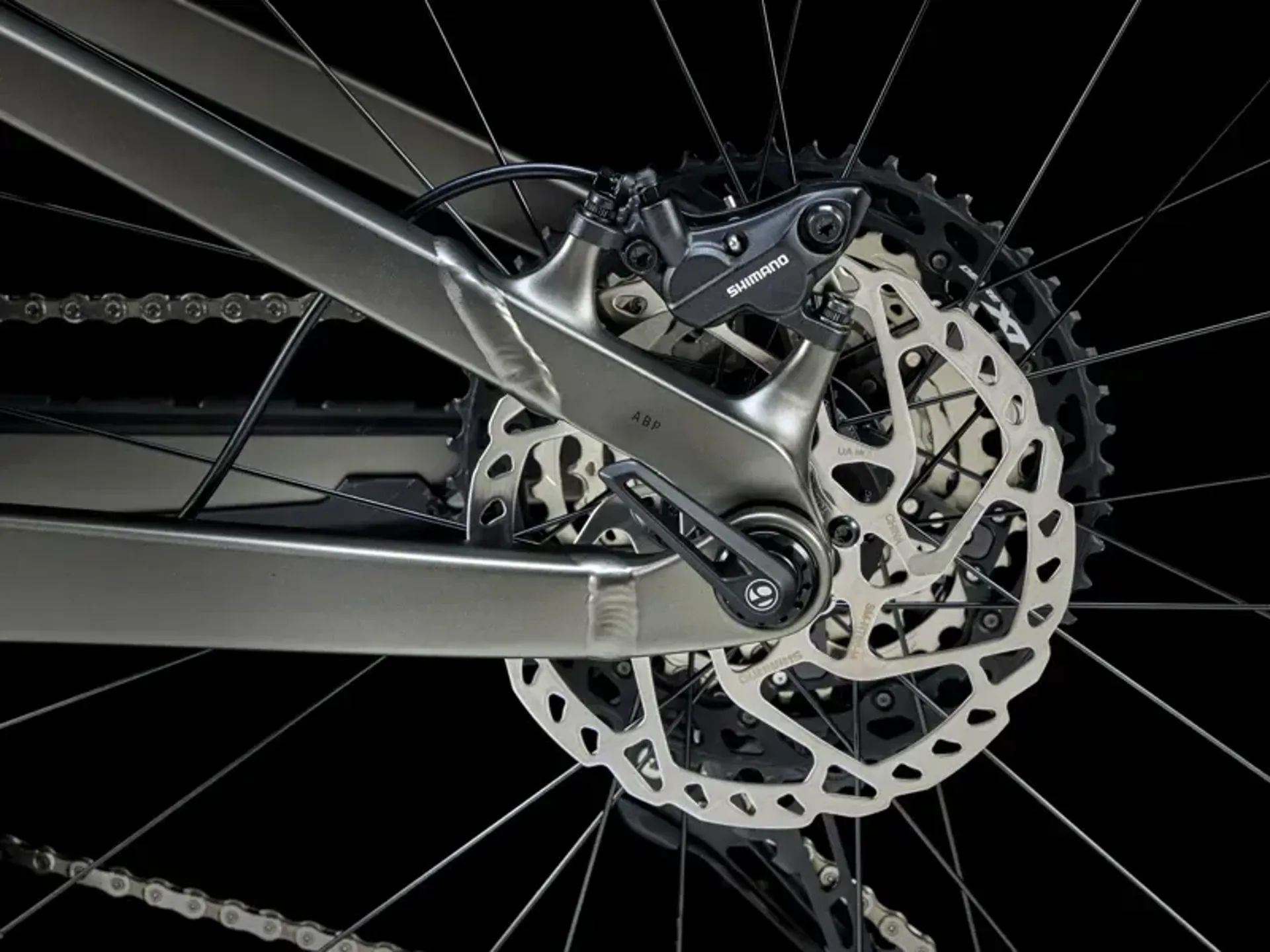

Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake Rotor
Size: XS, S, M, ML, L, XL, XXL - Shimano RT66, 6-bolt, 203 mm
Brake Rotor
Size: XS, S, M, ML, L, XL, XXL - Shimano RT66, 6-bolt, 180 mm
Rotor Size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Weight
M - 15.91 kg / 35.08 lbs (with TLR sealant, no tubes)
Weight Limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
