Frame

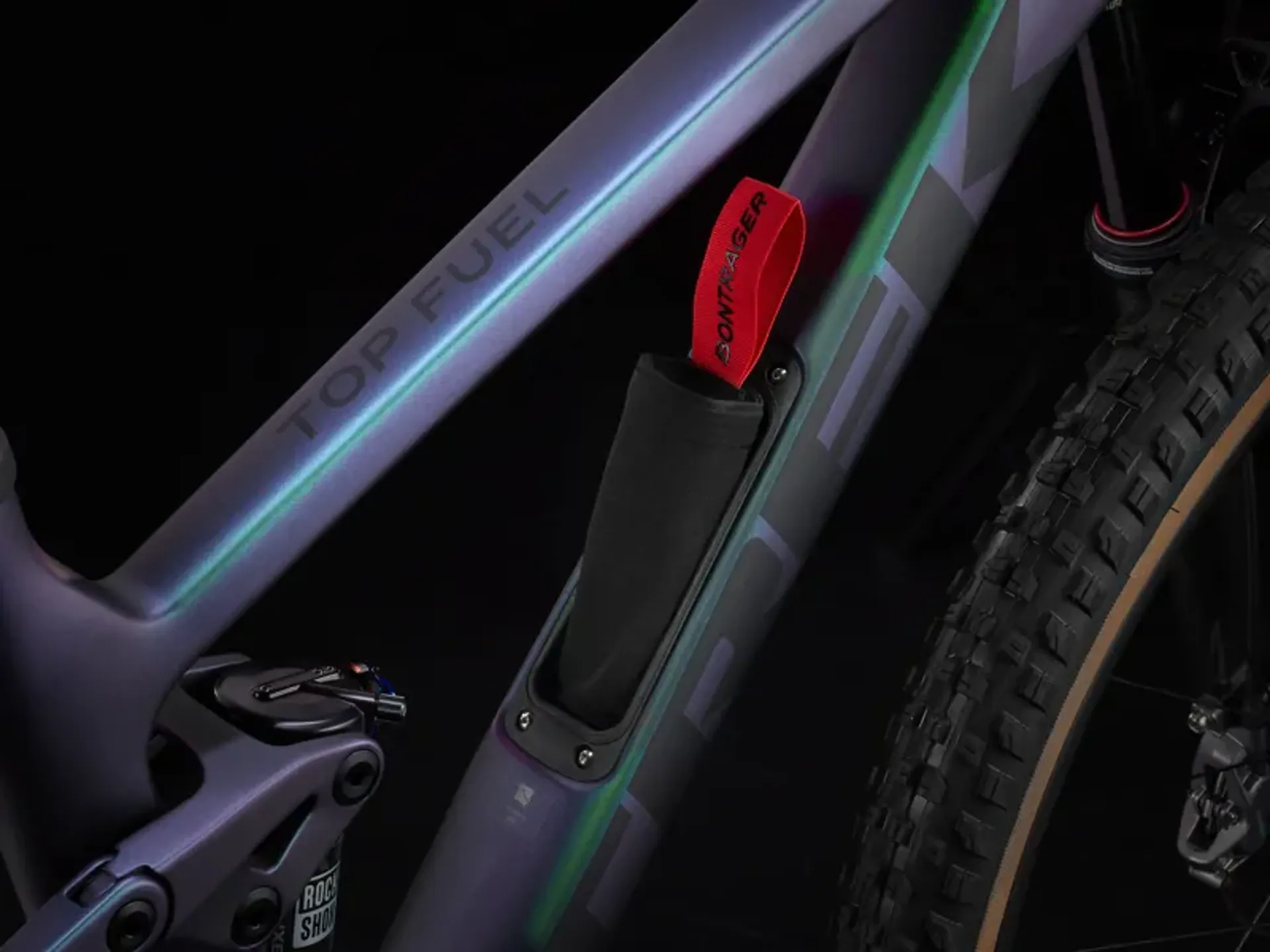

OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork
RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel

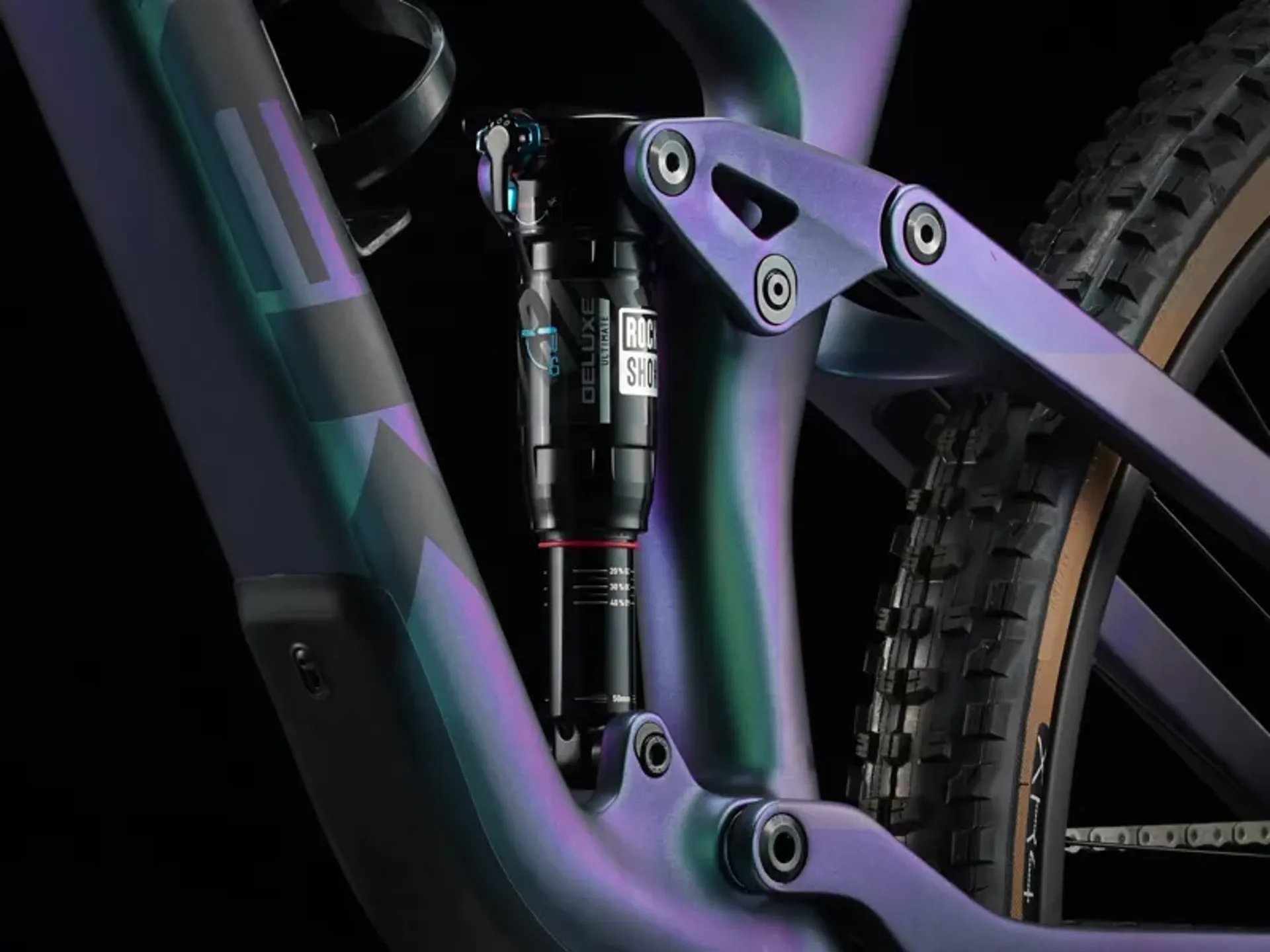

Shock
RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
Max compatible fork travel
130mm (541mm axle-to-crown)
Wheel front
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
Tyre
Size: XS
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40"
Size: S, M, M/L, L, XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Sealant
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50", Fork: See manufacturer
Battery
SRAM eTap battery pack (with charger)
Shifter
SRAM Eagle AXS POD

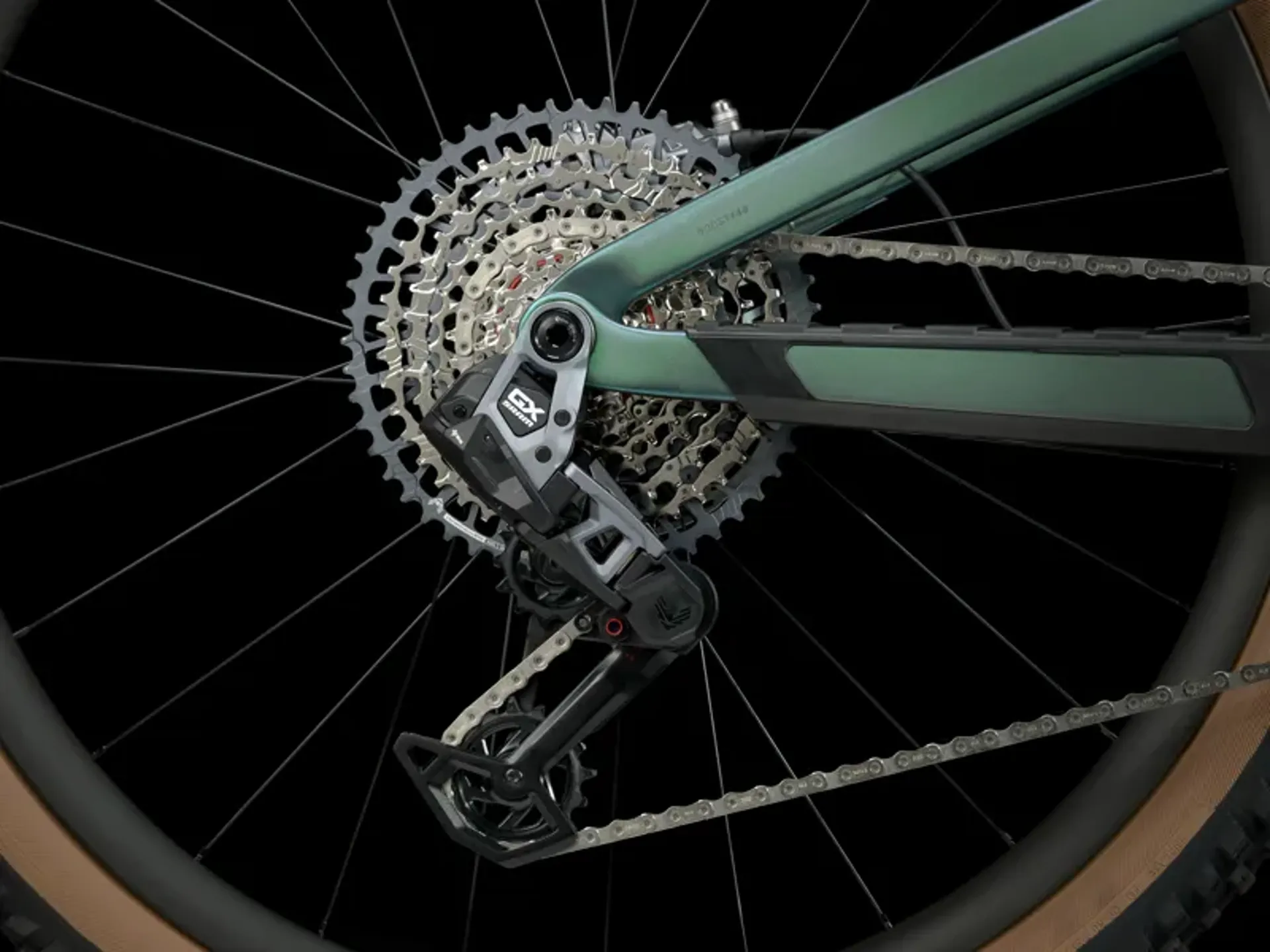

Rear derailleur
SRAM GX Eagle AXS, T-Type
Crank
SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Bottom bracket
SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain
SRAM GX Eagle, T-Type, 12-speed
Max. chainring size
1x: 36T round, 34T oval, min 28T
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size: XS, S
Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
Size: M, M/L
Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
Size: L
Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
Size: XL
Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length

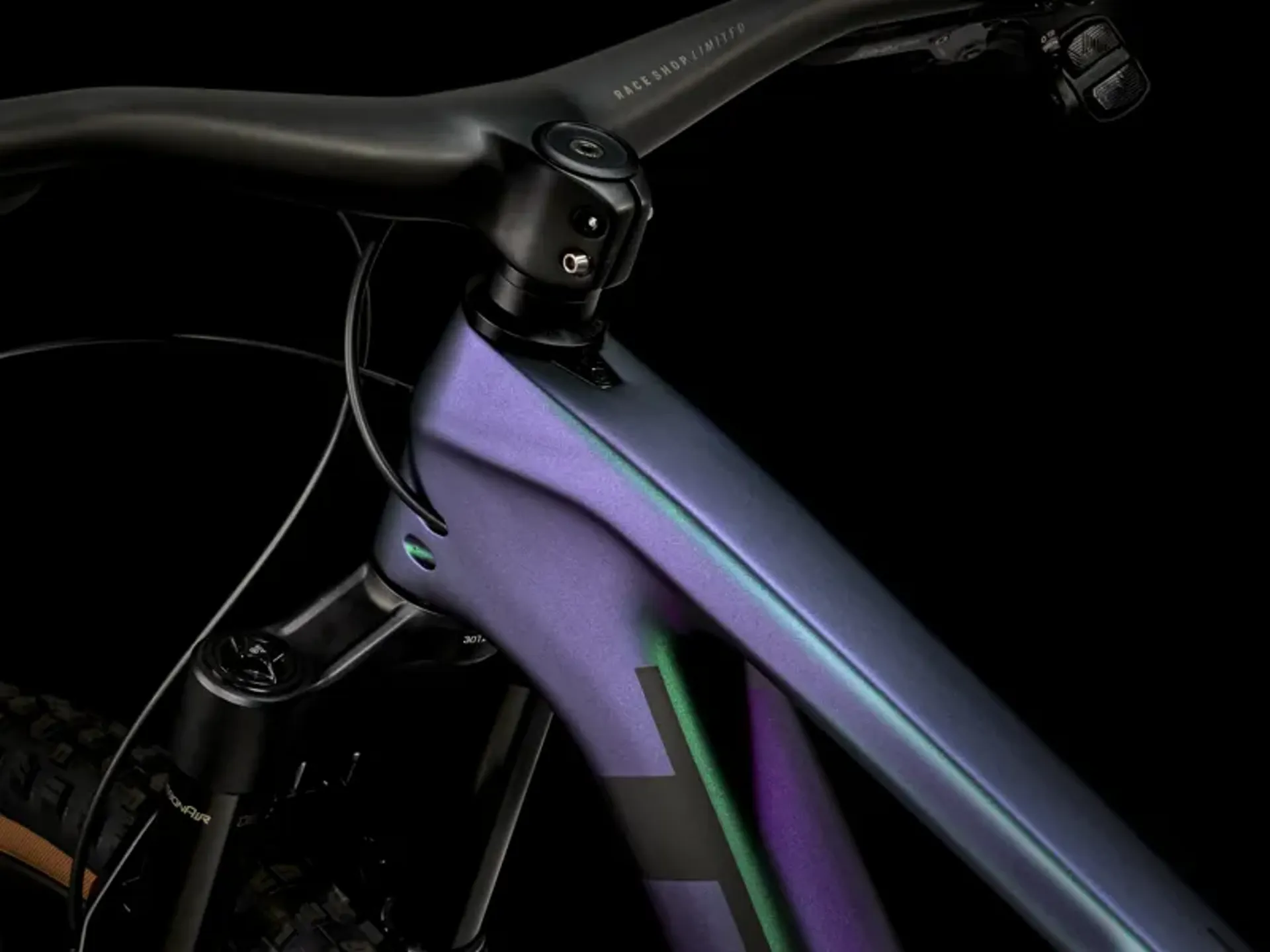

Handlebar/stem (integrated)
Size: XS, S
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Size: M, M/L, L, XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips
Bontrager XR Trail Elite, nylon lock-on
Rotor size
Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
Weight
M – 12.80 kg / 28.22 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
